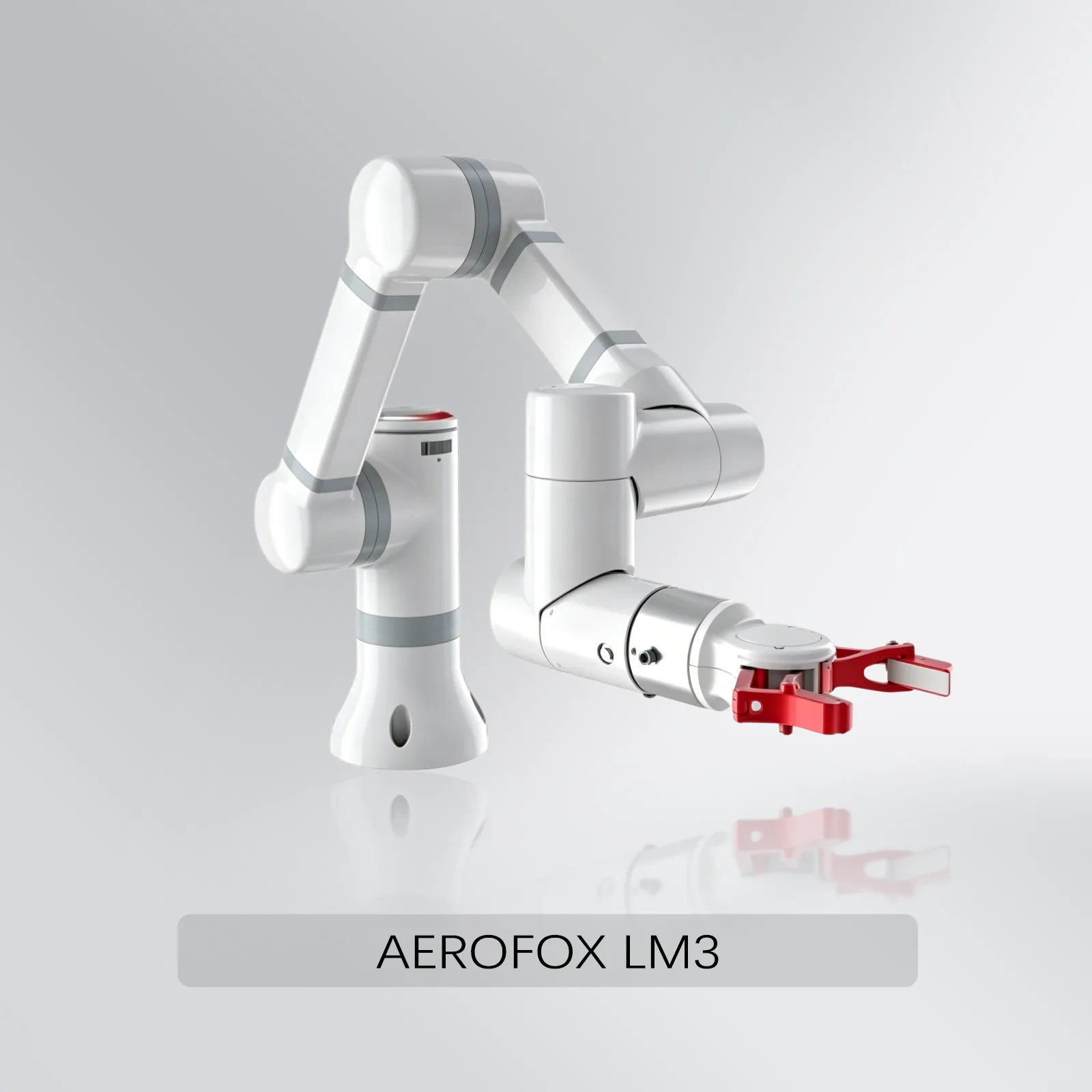

AEROFOX LM3
The AEROFOX LM3 is a compact and lightweight 6-axis collaborative robot designed for flexible deployment across a wide range of applications. With a payload capacity of 3 kg and a working radius optimized for precision tasks, LM3 is ideal for assembly, handling, education, and service scenarios.
Engineered with a streamlined structure and lightweight materials, LM3 reduces installation complexity while maintaining high rigidity and stability. Its low operating noise makes it suitable for environments requiring quiet operation, such as laboratories and commercial spaces.
LM3 features an intuitive control system with a browser-based interface, eliminating the need for traditional teaching pendants. Users can easily program and control the robot via drag-and-drop timeline editing or advanced scripting using Python and C++. The open SDK and flexible interface design make LM3 highly adaptable for secondary development.
It is a perfect balance of usability, performance, and scalability for modern collaborative robotics.
|
Parameter |
Value |
| Degrees of Freedom | 6 |
| Working Radius | 638 mm |
| Protection Rating | IP54 |
| End I/O | DI × 2 / DO × 2 |
| Payload | ≤ 3 kg |
| Weight | 9.5 kg |
| Joint Range | No limit* |
| Base Diameter | 143 mm |
| Repeatability | ± 0.5 mm |
| Joint Speed | ≤ 180°/s |
| Mounting Method | Supports upright, side, and suspended mounting |
| Ambient Humidity | 25 - 85% (Non-condensing) |
| Ambient Temperature | 0 ~ 40 °C |
| Power Supply | 100-240 V (AC) / 50-60 Hz, 48 V (DC) |
