AEROFOX EVO Max 4T
With intelligent flight autonomy and strong anti-interference capability, it delivers stable and reliable performance even in GPS-challenged conditions.
A-Mesh networking and multi-sensor payload enable efficient detection, coordination, and mission execution.
EVO Max 4T is a next-generation industrial drone built for complex and demanding missions. Powered by Autel Autonomy, it enables advanced path planning, 3D mapping, and intelligent obstacle avoidance. With strong anti-interference capability and visual navigation, it maintains stable flight in GPS-denied environments. Featuring A-Mesh networking and multi-sensor fusion, it delivers 720° obstacle detection and reliable situational awareness. Integrated with zoom, wide-angle, thermal cameras, and laser rangefinder for efficient operations in public safety, inspection, and emergency response.

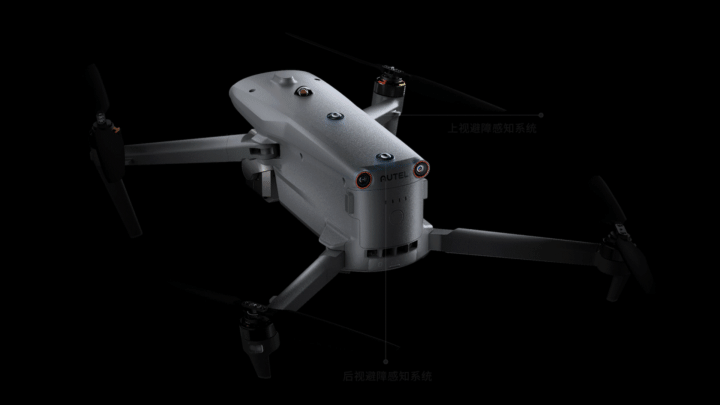

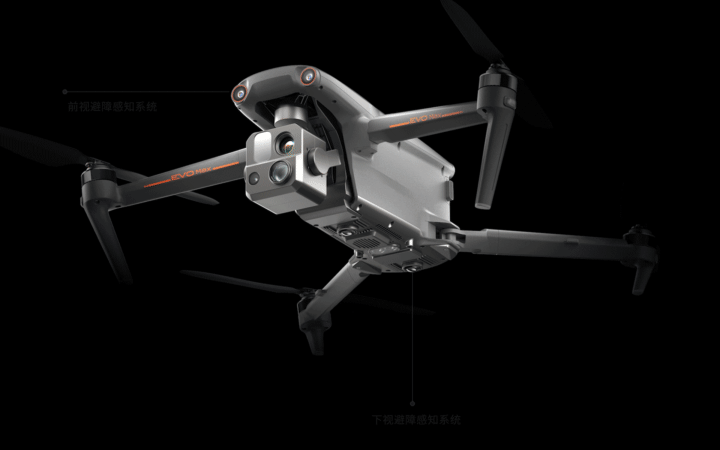

720° Obstacle Avoidance
Equipped with binocular fisheye vision and millimeter-wave radar for full 720° sensing and obstacle avoidance.
Ensures safe flight in complex environments, including water surfaces and power lines.
Performs reliably in dust, fog, rain, snow, and low-light conditions.
Strong Anti-Interference
Built-in flight control, GNSS, and transmission modules detect and resist signal interference.
Ensures stable and reliable flight in complex environments.
A-Mesh Networking
Industry-first A-Mesh networking enables seamless drone-to-drone and air-to-ground connectivity.
Supports multi-drone control, dual-operator modes, and stable communication in complex or signal-limited environments.
Ultra Zoom
Supports 4K 35x optical zoom and up to 560x hybrid zoom for long-range observation. Enables clear identification of targets up to 8 km away, ideal for surveillance and inspection.
Ultra-Low-Light Imaging
The infrared system supports up to 56× hybrid zoom and features dual thermal imaging lenses with a resolution of 640 × 512. Equipped with a 13 mm wide-angle lens and a 45 mm telephoto lens, it enables both wide-area situational awareness and detailed long-range inspection.
Advanced Infrared
Supports intelligent multi-frame noise reduction and HDR fusion technology, enabling clear target detail capture even under moonlight conditions, suitable for a wide range of application scenarios.
Precision Rangefinding
The laser rangefinder supports one-click point positioning, enabling quick acquisition of target location, with a maximum measuring distance of up to 2 km.
See Everything. Capture Anything.
Zoom Camera
48MP
Video: 4000 × 3000 @30fps
10× Continuous Optical Zoom
160× Hybrid Zoom
Adjustable Aperture: F2.8–F4.8
Ultra-Sensitive Wide Camera
48MP
1/2" CMOS
Aperture: F2.8
FOV: 83.4°
Equivalent Focal Length: 24mm
Thermal Camera
Resolution: 640 × 512
Focal Length: 9.1mm
16× Digital Zoom
Temperature Range: -20°C to +150°C / 0°C to +550°C
Laser Rangefinder
Range: 5–1200 m
Accuracy: ± (1 m + D × 0.15%)
D = Distance to target
See Everything. Capture Anything.
Zoom Camera
48MP
Video: 4000 × 3000 @30fps
10× Continuous Optical Zoom
160× Hybrid Zoom
Adjustable Aperture: F2.8–F4.8
Ultra-Sensitive Wide Camera
48MP
1/2" CMOS
Aperture: F2.8
FOV: 83.4°
Equivalent Focal Length: 24mm
Thermal Camera
Resolution: 640 × 512
Focal Length: 9.1mm
16× Digital Zoom
Temperature Range: -20°C to +150°C / 0°C to +550°C
Laser Rangefinder
Range: 5–1200 m
Accuracy: ± (1 m + D × 0.15%)
D = Distance to target
Our in-house designers and engineers have produced countless great designs for customers from different industries
Multitasking and Intelligent Assistance
Autel Smart Controller V3
High-Brightness Display 7.9-inch screen, up to 2000 nits, 2048 × 1536 resolution
Fast Download: Up to 20 MB/s transfer from drone to mobile device
Connectivity: HDMI output for live streaming, USB port for 4G module expansion
Long Battery Life: Up to 4 hours operation (50% brightness), fully charged in 2 hours
Large Storage: Built-in 128GB for easy media backup
Autel Multi-Rotor Drone Dock (Optional)
The Autel drone dock is an automated UAV operation platform equipped with an all-weather weather monitoring station, featuring a modular and lightweight design for rapid deployment in substations, industrial parks, rooftop platforms, and more; distributed deployment enables flexible operation modes and wider coverage, while the unattended system—composed of the dock, multi-rotor UAV, and Autel Sky platform—supports remote mission dispatch, real-time data synchronization, and secure data transmission, enabling decision-making from anywhere.
EVO Max Series Searchlight & Speaker Combo (Optional)
Size: 145 × 116 × 83 mm
Interface: Payload SDK
Mounting: Quick-release (screw type)
Operating Temp: -10°C to 50°C
Searchlight: Max Power 30W; FOV 14°; Illumination 30 lux @50m / 7 lux @100m / 3 lux @150m; Modes: Strobe / Continuous; Tilt: +30° to -90° (remote or gimbal sync); Adjustable brightness
Speaker: Power 10W; Volume 114 dB @1m; Range ≥300 m; Latency <300 ms; Supports recording and audio playback
RTK Module (Optional)
Enhances electromagnetic interference resistance and delivers centimeter-level positioning accuracy, enabling precise inspection operations.
application scenario
Extensive Experience in UAV & Robotics Technologies
Independent Flight Control System Development Advanced Powertrain Engineering Professional Intelligent Battery Development
