Aerofox Provides Oem/Odm Services For Robots And Drones

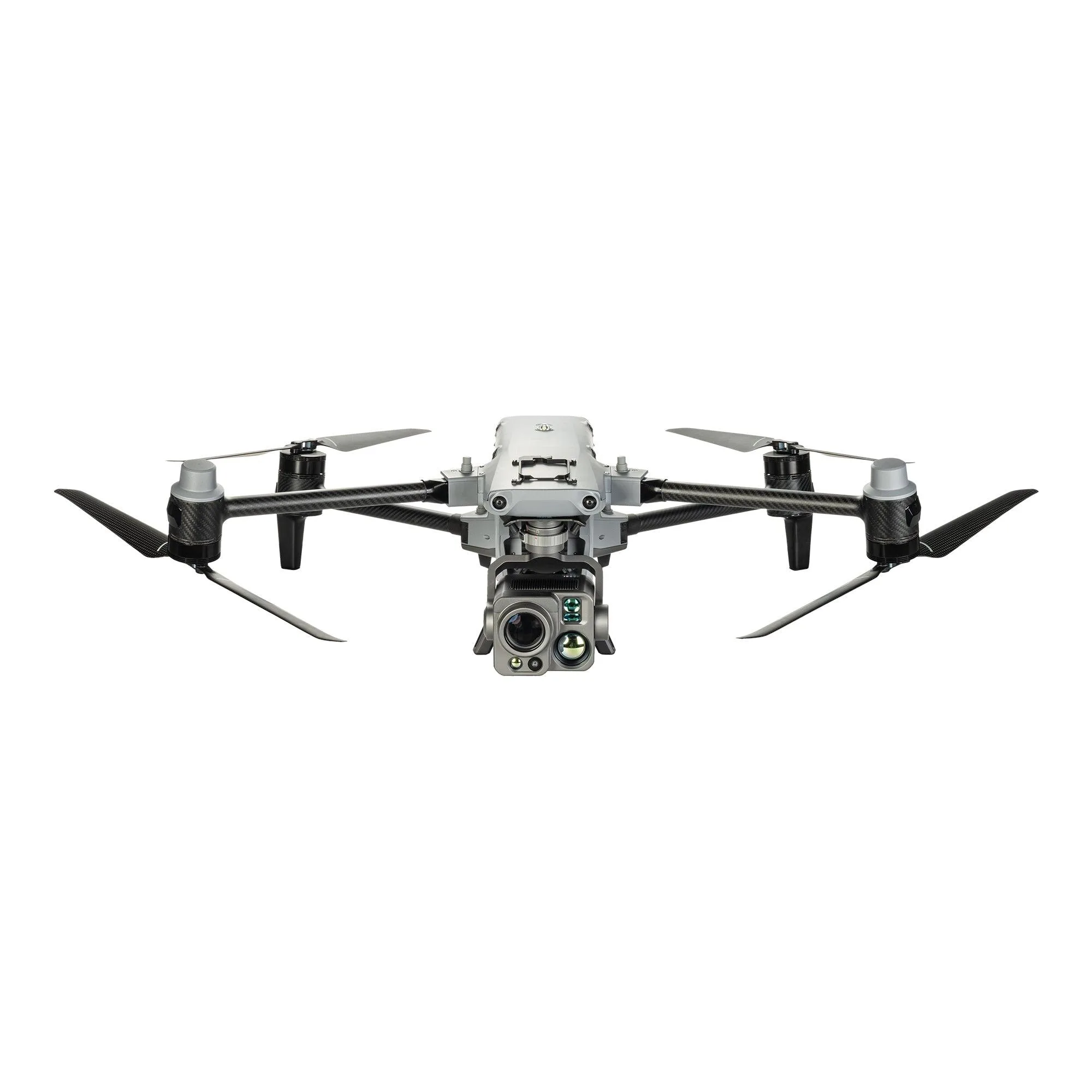

AEROFOX Alpha

Autel Alpha is a high-performance industrial drone built for public safety, inspection, and emergency operations. Advanced autonomy, strong anti-interference, and obstacle avoidance ensure stable performance in complex environments.Foldable design with IP55 protection and RTK dual antennas for precise positioning.Paired with the L35T payload, it supports 560x zoom, dual thermal imaging, and laser ranging for long-range detection up to 8 km.

Inquiry

Write a Review

Autel Alpha is a high-performance industrial drone designed for public safety, inspection, and emergency response. With strong anti-interference, obstacle avoidance, and advanced flight autonomy, it ensures reliable operation in complex environments. Featuring a foldable design, IP55 protection, and RTK dual antennas for precise positioning. Paired with the L35T payload, it supports ultra-long zoom, thermal imaging, and laser ranging for long-distance detection and monitoring.

15 km Video Transmission Range

High-Precision Visual Navigation

AI Target Recognition & Positioning

56× Hybrid Zoom Dual Infrared Thermal Imaging

4K 35× Continuous Optical Zoom

IP55 Protection Rating

Hot-Swappable Battery

720° Omnidirectional Obstacle Avoidance

Flexible Payload Expansion

Ultra-Strong Anti-Interference

Beyond Limits. Total Target Control

L35T integrates dual thermal cameras, a 4K 35x optical zoom camera, a wide-angle camera, and a laser rangefinder.
Designed for long-range detection, precise observation, and multi-scenario applications.

Ultra Zoom

Supports 4K 35x optical zoom and up to 560x hybrid zoom for long-range observation. Enables clear identification of targets up to 8 km away, ideal for surveillance and inspection.

Ultra-Low-Light Imaging

The infrared system supports up to 56× hybrid zoom and features dual thermal imaging lenses with a resolution of 640 × 512. Equipped with a 13 mm wide-angle lens and a 45 mm telephoto lens, it enables both wide-area situational awareness and detailed long-range inspection.

Advanced Infrared

Supports intelligent multi-frame noise reduction and HDR fusion technology, enabling clear target detail capture even under moonlight conditions, suitable for a wide range of application scenarios.

Precision Rangefinding

The laser rangefinder supports one-click point positioning, enabling quick acquisition of target location, with a maximum measuring distance of up to 2 km.

Ultra-Strong Anti-Interference

Utilizing multi-band adaptive frequency hopping technology, the system effectively resists RF interference while maintaining high-precision visual navigation. It ensures stable and reliable flight even in complex environments with strong signal interference. In urban environments with weak or blocked GNSS signals, SLAM-based visual navigation enables stable flight performance.

Autonomous Flight (Autonomy)

Autel Autonomy technology enables continuous advancement in autonomous flight, supporting global path planning and 3D scene reconstruction in complex environments. It offers multiple operational modes including Return-to-Home, manual control, and mission-based obstacle avoidance, providing professional solutions for security, inspection, and surveying applications.

720° Omnidirectional Obstacle Avoidance

Integrating a multi-sensor fusion system combining 5-direction dual fisheye vision and 6-direction millimeter-wave radar, it delivers full 720° environmental perception and obstacle avoidance. Night-time obstacle avoidance is also supported, ensuring enhanced flight safety.

Fearless in Harsh Environments

IP55 protection rating with a maximum wind resistance of 12 m/s ensures reliable operation in rain and wind. It operates in temperatures ranging from -20°C to 50°C, maintaining stable performance in extreme cold and heat. With a maximum flight altitude of 4,500 meters, it adapts easily to various challenging environments.

Hot-Swappable Battery

Featuring a dual-battery redundancy design, it delivers up to 40 minutes of effective flight time. Hot-swappable batteries enable seamless rotation for continuous and efficient operations.

Multitasking and Intelligent Assistance

Quick Mission

After selecting a target point on the live view or map, the drone automatically flies to the target.

Waypoint Mission

Users can manually add waypoints and configure parameters.

Quick Mission

After selecting a target point on the live view or map, the drone automatically flies to the target.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Laser Rangefinding

With the integrated laser rangefinder, users can mark a point in the camera view to quickly obtain target coordinates and altitude.

AI Target Recognition

Using zoom or thermal imaging, the system automatically detects objects such as people, vehicles, and vessels, and projects their positions onto the map.

Accessory

Autel Smart Controller V3

High-Brightness Display: 7.9-inch screen, up to 2000 nits brightness, 2048 × 1536 resolution.

Fast Data Transfer: Download media from the drone to mobile devices at speeds up to 20 MB/s.

Connectivity: HDMI output for live streaming; USB port supports 4G module expansion.

Large Storage: Built-in 128 GB storage for easy media backup.

Autel Alpha

Autel Alpha Searchlight & Speaker Combo (Optional)

Size: 163 × 132 × 77 mm
Interface: Payload SDK
Mounting: Quick-release (screw type)
Operating Temp: -10°C to 50°C

Searchlight

Max Power: 60W
FOV: 14°
Illumination: 36 lux @50m / 8.7 lux @100m / 3.7 lux @150m
Modes: Strobe / Continuous
Tilt Angle: +30° to -90° (remote or auto gimbal sync)
Brightness: Adjustable

Speaker

Power: 10W
Volume: 114 dB @1m
Range: Up to 300 m
Latency: <300 ms
Functions: Recording & Audio Playback

Tracer Air

Tracer Air RF Detection System (STA100) (Optional)

Size: 130 × 120 × 68 mm
Weight: 745 g (without mount) / 808 g (with mount)
Frequency Bands: 2.4G / 5.2G / 5.8G
Detection Range: Up to 3 km
Target Tracking: Up to 6 sources simultaneously

Key Functions

Pilot Positioning
Interference Source Detection

Overview
Mounted on a UAV, the system uses high-precision RF direction finding to locate signal sources (e.g., drone controllers).
It performs both horizontal and vertical positioning to estimate the target area and display it on a map.
Combined with visual search and AI recognition, it enables efficient identification of drone operators.
