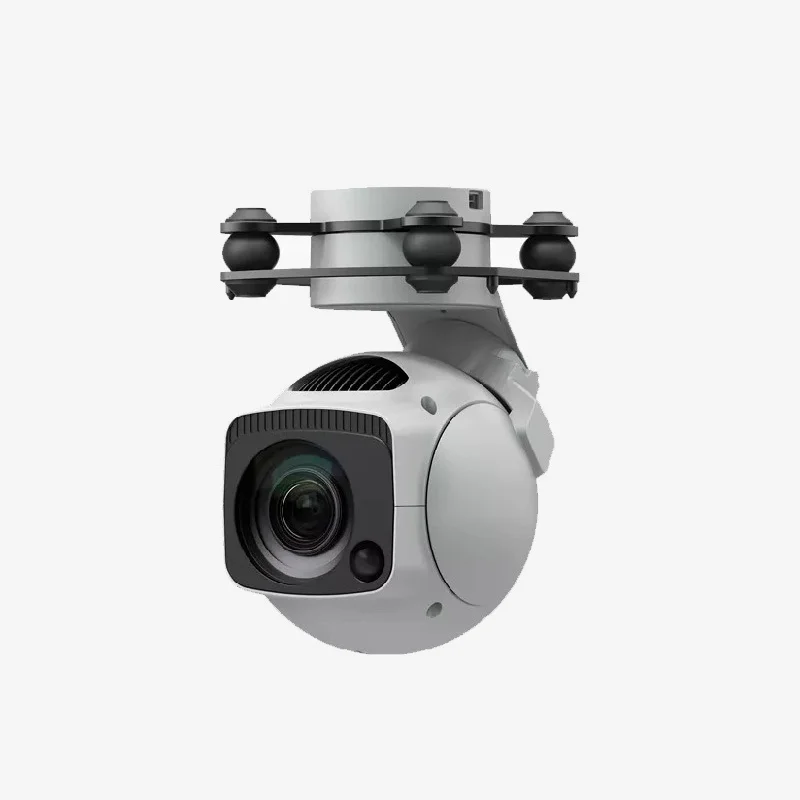

AEROFOX A80Pro 40x-4K Spherical Pod Drone Payloads 1

AEROFOX A80Pro 40x-4K Spherical Pod Drone Payloads 2

AEROFOX A80Pro 40x-4K Spherical Pod Drone Payloads 3

AEROFOX A80Pro 40x-4K Spherical Pod Drone Payloads

Carries an 8.29M pixels 40x hybrid zoom camera, which provides a video resolution of 4K@30fps and an image resolution of 3840x2160.
Laser lighting module ensures the camera getting a clear image even in complete darkness.
Features auto target tracking, which can constantly track the target selected on screen.
Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The D-80Pro is able to spin continually around its yaw axis.

Inquiry

Write a Review

Product Overview

With the GCU, the D-80Pro supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.
Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-80Pro provides a stabilization accuracy at ±0.01°.
Can be mounted onto multiple carriers, whether downward or upward.
With the GCU and the Dragonfly software, user can watch the image and control the pod without protocol ducking.
With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.
Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save.
Supports ONVIF protocol.
14~53 VDC wide voltage input.

Product parameters

General
Product Name	D-80Pro
Dimensions	Pod: 85.8 x 86 x 129.3mm GCU: 45.4 x 40 x 13.5mm
Weight	Pod: 405g GCU: 18.6g
Operating Voltage	14 ~ 53 VDC
Power	Pod: 6.7W (AVG, light off) / 55 W (Stall, light on) GCU：1.8W
Mounting	Downward / Upward
Gimbal
Gimbal Type	3-axis Nonorthogonal Mechanical Stabilization
Angular Accuracy	±0.01°
Controllable Range	Pitch: -157°～+70°, Yaw: ±360°constantly
Max Controllable Speed	Pitch:±200°/s, Yaw: ±200°/s
Zoom Camera
Image Sensor	1/2.8”CMOS; Effective Pixels: 8.29M
Lens	Focal Length: 4.8~48mm Aperture: f1.7~f3.2 HFOV: 60.2°～6.6° VFOV: 36.1°～3.7° DFOV: 67.2°～7.6°
Resolution	3840 x 2160
Pixel Pitch	1.45μm
Electronic Shutter Speed	1~1/30000 s
Optical Zoom Rate	10x
Equivalent Digital Zoom Rate	4x
Min Illumination	Night Vision off: 0.01Lux / f1.5 Night Vision on: 0.001Lux / f1.5
Object Detection Distance	EN62676-4:2015	Person[1]: 1449m Light vehicle[2]: 1904m Large vehicle[3]: 4057m
	Johnson Criteria	Person: 16552m Light vehicle: 50759m Large vehicle: 108138m
Object Identification Distance	EN62676-4:2015	Person: 290m Light vehicle: 381m Large vehicle: 811m
	Johnson Criteria	Person: 4138m Light vehicle: 12690m Large vehicle: 27035m
Object Verification Distance	EN62676-4:2015	Person: 145m Light vehicle: 190m Large vehicle: 406m
	Johnson Criteria	Person: 2069m Light vehicle: 6345m Large vehicle: 13517m
Laser Lighting Module
Wavelength	850±10nm
Laser Power	0.8W
Beam Angle	8°
Beam Diameter	14m @ 100m
Effective Illumination Distance	≤200m
Laser Safety	Class 3B（IEC 60825-1:2014）
Image & Video
Image Format	JPEG
Maximum Image Resolution	3840 x 2160
EXIF	Shooting point coordinate
Video Format	MP4
Maximum Video Resolution	4K@30fps
Stream Encode Format	H.264，H.264H，H.264B，H.265，MJPEG
Stream Network Protocol	ONVIF，GB/T28181，RTSP
Storage
Supported SD Cards	Supports a Speed Class 10 MicroSD card with a capacity of up to 256GB
Environment
Operating Temperature	-20℃～50℃
Storage Temperature	-40℃～60℃
Operating Humidity	≤85%RH (Non-condensing)
