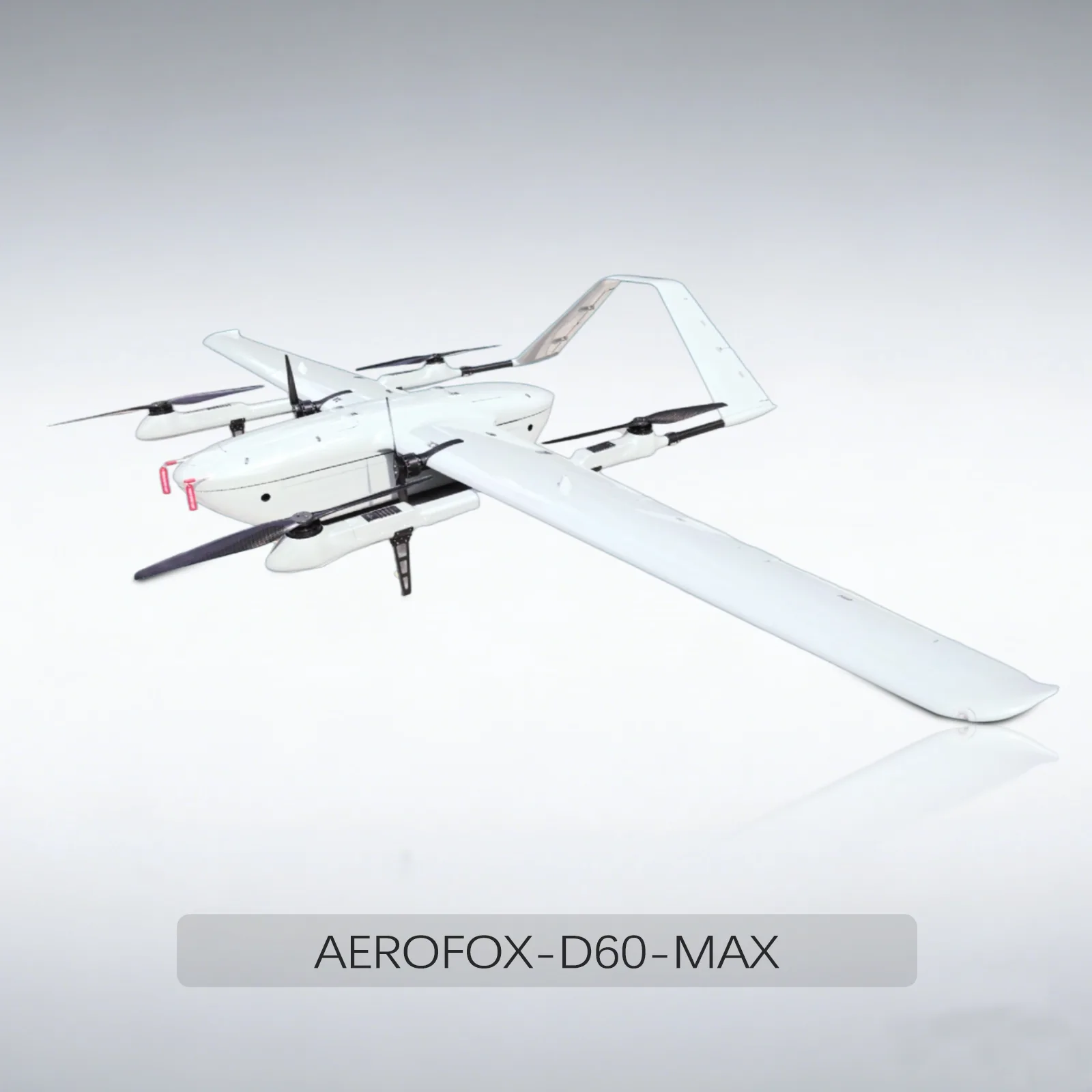

AEROFOX-D60-MAX
Technical Specifications
| Drone Parameter | Value |
| Aircraft Dimensions | 6540 × 2974 × 1000 mm |
| Standard Takeoff Weight | 120 kg |
| Maximum Payload Capacity | 50 kg |
| Cruising Speed | 95 km/h |
| Maximum Flight Speed | 130 km/h |
| Control Radius (Customizable) | 100 km |
| Maximum Climb Rate | 3 m/s |
| Maximum Descent Rate | 4 m/s |
| Maximum Takeoff Altitude | 3000 m |
| Maximum Wind Resistance | Level 6 |
| Operating Temperature | -20 to 60°C |
| Maximum Endurance (30 kg Payload) | 100 min |
| Maximum Endurance (50 kg Payload) | 60 min |
| Maximum Range (30 kg Payload) | >100 km |
| Body Protection Rating | IPX4 |
| Navigation Anti-Interference (8-Element Array) | Multi-element full-band GNSS anti-jamming antenna with 100 dBc interference suppression |
100Min Ultra-Long Range
AEROFOX-D60-MAX can achieve an endurance of 100 minutes with a 30 kg payload,covering a flight distance of over 100 km. With a 50 kg payload, it can sustain aflight time of 60 minutes, reaching a distance of more than 70 km.
50kg Payload Capacity
AEROFOX-D60-MAX features an efficient aerodynamic design and supports a maximumpayload of 50 kg. It is specifically designed for cargo transportation. The cargo bay isdetachable from the fuselage, making cargo loading more convenient.
Redundant Safety
With redundant ailerons, tail control surface design, and advanced flight controlalgorithms, the AEROFOX-D60-MAX is capable of maintaining controllable flight evenin the event of a single control surface failure, and can enter protection mode toperform an emergency landing.
Rapid Deployment
AEROFOX-D60-MAX adopts a quick-release design, allowing for fast assembly andpre-flight preparation within 10 minutes. The modular fuselage and wingstructure greatly simplify transportation.
Communication Link Anti-Jamming
The data link supports a maximum bandwidth of 20 MHz, with a communicationrange of up to 200 km and a maximum throughput of 40 Mbps. It features intelligentfrequency selection, AES-256 encryption, and range extension mode. Additionally, itsupports intelligent frequency hopping, heterogeneous frequency networking, andanti-jamming measures to effectively evade signal jamming and spoofing devices.Equipment can be customized for frequency ranges between 0.7 GHz and 2.7 GHzbased on customer requirements and on-site environments, enabling true interfer-ence resistance.
GNSS Anti-Jamming and GNSS RTK HeadingObservation
AEROFOX-D60-MAX can be equipped with a four-element array antenna, providing multi-source interferenceresistance with anti jamming performance up to 100 dB. It can also be fitted with an RTK-based direc-tion-finding system to defend against magnetic field interference.
Multi-Unmanned Aerial Vehicle Formation
1. Intelligent Inter-UAV Communication System
AGR UAVs adopt an adaptive multi-UAV coordinated communication technology that overcomesthe traditional reliance on dedicated links. Key features include:
2. All-Dimensional Custom Swarm Formation Solution
As an industry-first 3D dynamic swarm configuration system, it meets professional-level forma-tion needs with:
Multi-operator Control(optional)
Supports remote takeoff and landing, meeting the requirements of long-range operations with relayflight capability.
Takeoff and Landing on a Mobile Platform(optiona)
Supports takeoff and landing on moving platforms such as ships and vehicle-mounted mobile plat-forms.Sometimes, the flight platform, such as a boat or a vehicle, needs to move after the drone takesoff to complete a mission. In this scenario, the drone must be capable of following the moving flightplatform and landing once the task is completed. This feature is very useful when the VTOL drone isconducting a surveillance or monitoring mission on the sea.
Night Flight Capability
The AEROFOX D10 MAX is equipped with navigation lights and infrared thermal imaging,enabling it to perform search and rescue as well as reconnaissance missions at night. Anight vision system is available as an optional configuration.
Point of Interest (POI) Follow and Orbit Function
The UAV selects points of interest for tracking via the AI pod. Under guidance from the imageprocessing system, the UAV autonomously performs follow and orbit operations around targets.The system is equipped with a laser rangefinder capable of accurate measurement of targetcoordinates at distances up to 3000 meters
Semi-solid-state High EnergyDensity Low-temperatureResistant Energy System
The battery adopts a semi-solid-state lithium cobalt oxide (LCO) formulation optimizedfor low temperatures, maintaining a state of charge (SOC) degradation within 20% at20°C without heating, suitable for extreme cold operational environments.
Flight Simulation Training System
The UAV is equipped with a flight simulation training system that supports missionplanning, simulated flight, and formation flight training. The simulation systemenables full-process operation exercises, effectively reducing training costs.
Dual screen ground station
The whole machine is made of aluminum alloy, with silicone anti-slip and 8anti-collision corners for higher protection. All peripheral interfaces are dust-proof and waterproof to ensure the safety of the equipment.
| Parameter | Value | Parameter | Value |
| System | Windows 10 / Linux | Battery Capacity | 266 Wh |
| Weight | 10 kg | Dimensions | 416 × 330 × 100 mm |
| Processor | Intel i7 11th Gen CPU | Operating Time | 4-6 h |
| Graphics | Intel Iris Xe | Operating Temperature | -10 to 60°C |
| RAM & Storage | 16 GB + 512 GB | Remote Output | 20-channel dual SBUS output / USB-HID / Custom protocol |
| WiFi | 2.4G / 5.8G WiFi, Bluetooth 4.0 | Reserved Space | 175 × 80 × 41 mm |
| Display | 2 × 15.6" (1920 × 1080 resolution) | Internal Reserved Ports | 6 × RS232 / 2 × USB / 1 × RJ45 |
| Touchscreen | 10-point touch | Internal Power Supply | 12V 3A |
| External Ports | 2 × USB 3.0 / 1 × HDMI / 1 × LAN / Line-out / Mic-in | Physical Controls | 2 × Flight Sticks / 1 × Thumb Stick / 6 × 3-position Switches / 2 × Knobs / 8 × Buttons |
| Brightness | 1000 nit |
ADS-B Civil Aviation Collision Avoidance System(optional)
Supports ADS-B collision avoidance system, enabling real-time display ofnearby manned aircraft broadcasts via ADS-B on the ground control station,helping to prevent collisions between UAVs and manned aircraft.
Open-source customization
Supports customization based on open-source flight control systems,including the ArduPilot and PX4 open-source projects.
Extensive Experience in UAV & Robotics Technologies
Independent Flight Control System Development Advanced Powertrain Engineering Professional Intelligent Battery Development
