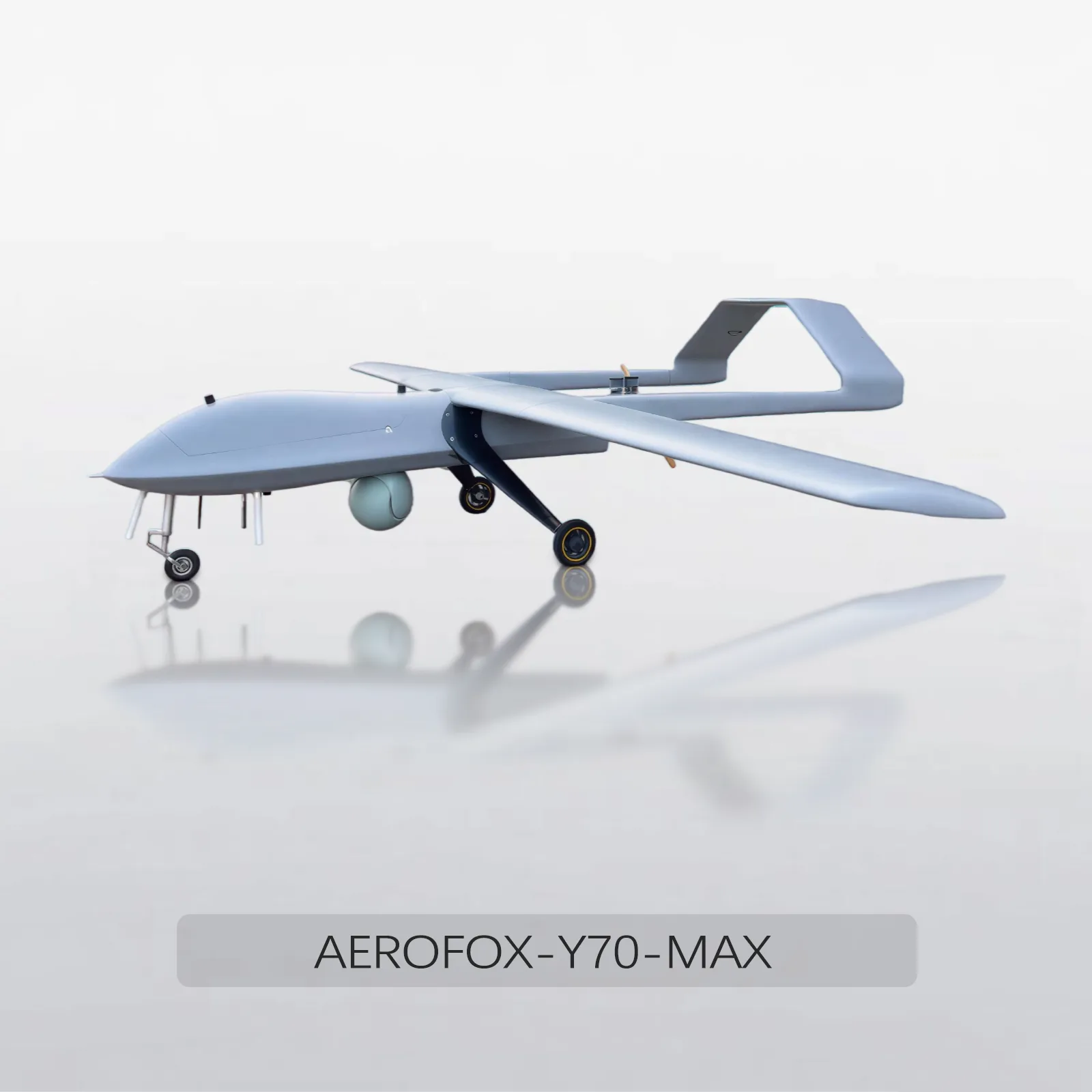

AEROFOX-Y70-MAX
Technical Specifications
| Parameter | Value |
| Product Positioning | Long-range, long-endurance, high-altitude detection and communication UAV |
| Wingspan | 7.05 m |
| Wing Area | 451 |
| Length | 4.34 m |
| Service Ceiling | 3000-5000 m |
| MTOW | 280 kg |
| Maximum Payload | Wing-mounted: 60 kg; Front cabin: 20 kg |
| Body Weight | 70 kg |
| Maximum Speed | 230 km/h |
| Cruise Speed | 130 km/h |
| Takeoff Distance | 180 m |
| Operating Temperature | -20°C to 50°C |
| Cabin Size | Length 1318 mm × Width 547 mm × Height 420 mm |
| Control Radius | 100 m |
| Maximum Range | >800 km |
| Maximum Endurance | 6-7 h |
| Power System | 550-766cc gasoline engine |
| Wind Resistance | Level 4-5 |
| Fuel Tank Capacity | 70 L |
8H Ultra-Long Endurance
AEROFOX-Y70-MAX can fly for up to 6-7 hours with a 60 kg wing-mounted hardpoints and 20 kg for-ward bay payload, equipped with a self-starting integrated engine-displacement capable of pro-viding 550CC of power generation, the UAV is fitted with an electronic fuel injection (EFI) systemthat supports flight altitudes up to 5,000 meters.
70kg Payload Capacity
AEROFOX-Y70-MAX features an efficient aerodynamic design and supports a maximumpayload of 60 kg wing-mounted hardpoints and 20 kg forward bay payload. With a80 kg payload, it can achieve an endurance of 6-7 hours.
Real-time fuel level measurement
AEROFOX-Y70-MAX is capable of real-time fuel level measurement, enabling continuousmonitoring of the flight status.
Redundant Safety
With redundant ailerons, tail control surface design, and advanced flight controlalgorithms, the AGR Y70 MAX is capable of maintaining controllable flight even inthe event of a single control surface failure, and can enter protection mode to per-form an emergency landing.
Rapid Deployment
AEROFOX-Y70-MAX adopts a quick-release design, allowing for fast assembly and pre-flightpreparation within 10 minutes. The modular fuselage and wing structure greatlysimplify transportation.
GNSS Anti-Jamming and GNSS RTK HeadingObservation
AEROFOX-Y70-MAX can be equipped with a four-element array antenna, providing multi-source interferenceresistance with anti-jamming performance up to 100 dB. It can also be fitted with an RTK-based direc-tion-finding system to defend against magnetic field interference.
Multi-Unmanned Aerial Vehicle Formation
1. Intelligent Inter-UAV Communication System
AGR UAVs adopt an adaptive multi-UAV coordinated communication technology that overcomesthe traditional reliance on dedicated links. Key features include:
2. All-Dimensional Custom Swarm Formation Solution
As an industry-first 3D dynamic swarm configuration system, it meets professional-level forma-tion needs with:
Multi-operator Control(optional)
Supports remote takeoff and landing, meeting the requirements of long-range operations with relayflight capability
Point of Interest (POI) Follow and Orbit Function
The UAV selects points of interest for tracking via the Al pod. Under guidance from the imageprocessing system, the UAV autonomously performs follow and orbit operations around targets.The system is equipped with a laser rangefinder capable of accurate measurement of targetcoordinates at distances up to 3000 meters.
High-Performance Triple-SensorEO/IR Gimbal Pod
| TV Component | Specification |
| Band | 0.4 μm ~ 0.9 μm |
| Resolution | 1920 × 1080 |
| Focal Length | 4.25 ~ 170 mm |
| Horizontal Field of View (HFOV) | 62.13° ~ 1.73° |
| Optical Zoom | 40× |
| Detection Distance | Human: 11.1 km, Car: 20 km |
| Recognition Distance | Human: 2.7 km, Car: 11 km |
| IR Component | Specification |
| Band | 8 μm ~ 14 μm |
| Resolution | 640 × 512 |
| Pixel Size | 12 μm |
| Focal Length | 35 mm / F1.0 |
| Horizontal Field of View (HFOV) | 12.4° × 9.9° |
| Temperature Measurement | Supported |
| Detection Distance | Human: 1.7 km, Car: 7.4 km |
| Recognition Distance | Human: 0.4 km, Car: 1.8 km |
| Laser Ranging | Specification |
| Band | 1535 nm |
| Ranging Range | 15 ~ 3000 m |
| Ranging Accuracy | ±1 m |
| Ranging Frequency | 1 ~ 10 Hz |
AI Recognition
| Single-target Tracking | Specification |
| Target Type | General Target |
| Tracking Rate | ≥32 pixels/frame |
| Update Frame Rate | ≥50 FPS |
| Multi-target Tracking | Specification |
| Target Type | Human, Vehicle, Ship, Aircraft |
| Recall Rate | ≥90% |
| Precision Rate | ≥80% |
| Minimum Target Size | 32 × 32 @ 1080P |
| Number of Trackable Targets | ≥20 |
| Tracking Jump Rate | ≤15% |
| Update Frame Rate | ≥20 FPS |
Semi-solid-state High EnergyDensity Low-temperatureResistant Energy System
The battery adopts a semi-solid-state lithium cobalt oxide (LCO) formulation optimizedfor low temperatures, maintaining a state of charge (SOC) degradation within 20% at-20°C without heating, suitable for extreme cold operational environments.
COMPANY STRENGTH
The UAV is equipped with a flight simulation training system that supports missionplanning, simulated flight, and formation flight training. The simulation systemenables full-process operation exercises, effectively reducing training costs.
Dual screen ground station
The whole machine is made of aluminum alloy, with silicone anti-slip and 8anti-collision corners for higher protection. All peripheral interfaces are dust-proof and waterproof to ensure the safety of the equipment.
| Parameter | Value | Parameter | Value |
| System | Windows 10 / Linux | Battery Capacity | 266 Wh |
| Weight | 10 kg | Dimensions | 416 × 330 × 100 mm |
| Processor | Intel i7 11th Gen CPU | Operating Time | 4-6 h |
| Graphics | Intel Iris Xe | Operating Temperature | -10 to 60°C |
| RAM & Storage | 16 GB + 512 GB | Remote Output | 20-channel dual SBUS output / USB-HID / Custom protocol |
| WiFi | 2.4G / 5.8G WiFi, Bluetooth 4.0 | Reserved Space | 175 × 80 × 41 mm |
| Display | 2 × 15.6" (1920 × 1080 resolution) | Internal Reserved Ports | 6 × RS232 / 2 × USB / 1 × RJ45 |
| Touchscreen | 10-point touch | Internal Power Supply | 12V 3A |
| External Ports | 2 × USB 3.0 / 1 × HDMI / 1 × LAN / Line-out / Mic-in | Physical Controls | 2 × Flight Sticks / 1 × Thumb Stick / 6 × 3-position Switches / 2 × Knobs / 8 × Buttons |
| Brightness | 1000 nit |
ADS-B Civil Aviation Collision Avoidance System(optional)
Supports ADS-B collision avoidance system, enabling real-time display ofnearby manned aircraft broadcasts via ADS-B on the ground control station,helping to prevent collisions between UAVs and manned aircraft.
Open-source customization
Supports customization based on open-source flight control systems,including the ArduPilot and PX4 open-source projects.
Extensive Experience in UAV & Robotics Technologies
Independent Flight Control System Development Advanced Powertrain Engineering Professional Intelligent Battery Development
