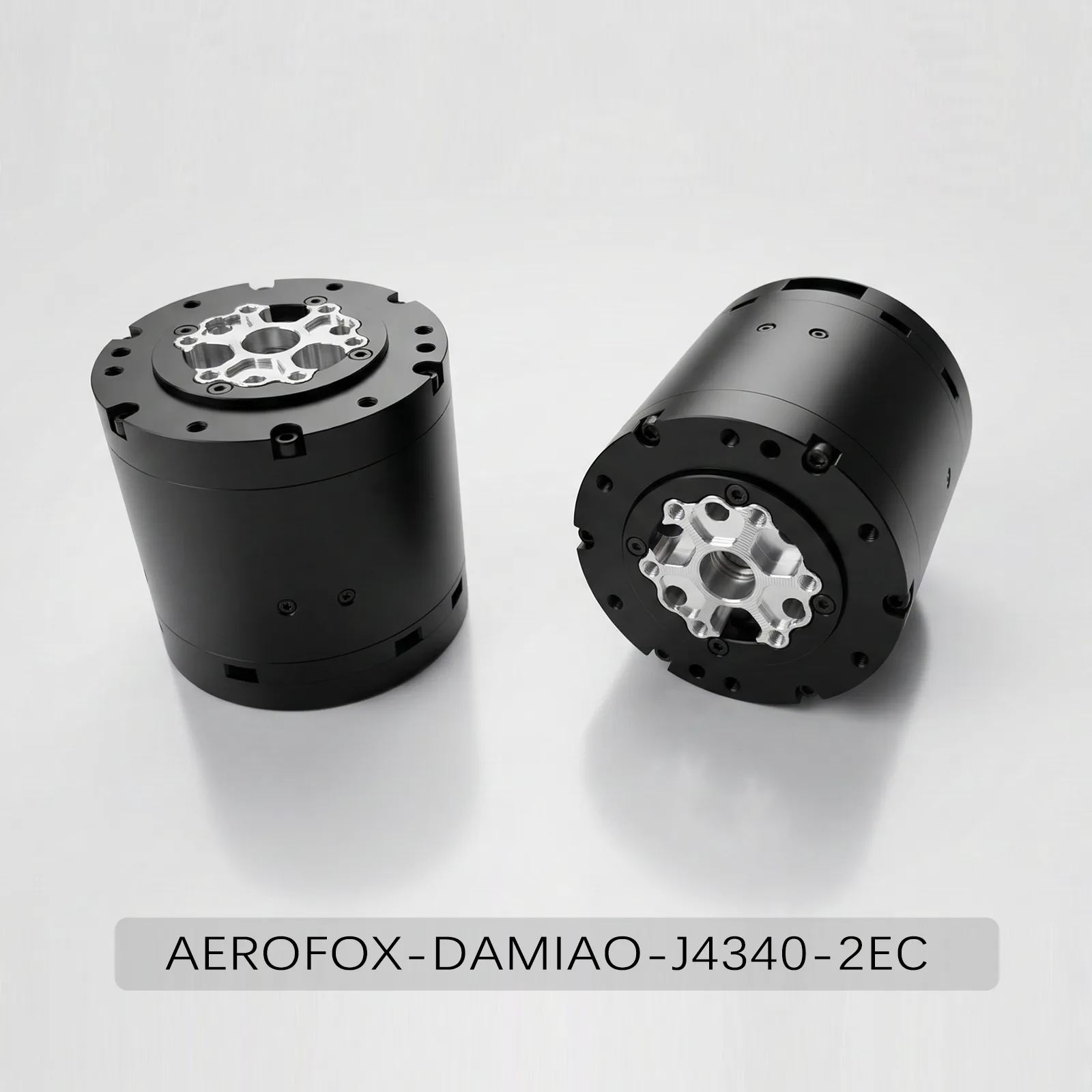

AEROFOX-DAMIAO-J4340-2EC
The DM-J4340 Series integrated joint motor is designed for medium-torque robotic joints requiring high reliability and smooth motion control. With a robust reduction mechanism and precise encoder feedback, it delivers stable torque output and accurate positioning for professional robotic systems.
Within the OpenArm robotic arm architecture, the DM-J4340 series is commonly used in the elbow joint (J3), where higher torque is needed to support the arm structure and payload while maintaining smooth motion during lifting and extension movements.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Mechanical parameters
Performance Parameters
|
Parameter |
Value |
| Supply Voltage (V) | 24 |
| Rated Phase Current (A) | 3 |
| Peak Phase Current (A) | 8 |
| Rated Torque (Nm) | 9 |
| Peak Torque (Nm) | 27 |
| Rated Speed (rpm) | 36 |
| No-load Speed (rpm) | 52.5 |
| Rated Power (W) | 33 |
| Reduction Ratio | 40 |
| Pole Pairs | 14 |
| Phase Inductance (µH) | 360 |
| Phase Resistance (Ω) | 0.88 |
| Motor Size (mm) | 57 × 53.3 |
| Weight (g) | 362 |
| Encoder | Magnetic / Dual Encoder |
| Communication Mode | CAN, CAN FD |
