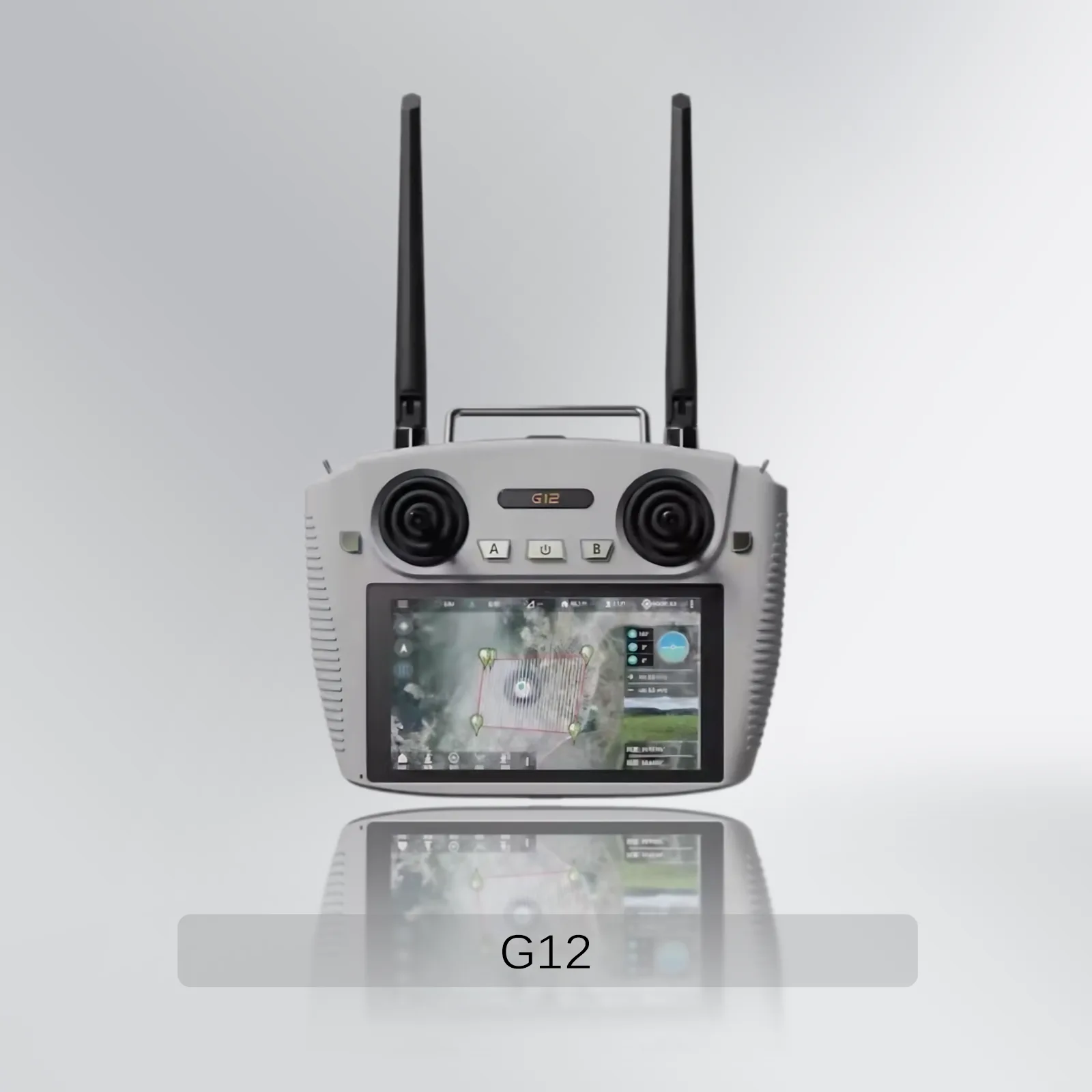

AEROFOX G12

AEROFOX G12 is a compact and reliable ground control station designed for UAV and robotic systems. It integrates remote control, HD video transmission, and data link into one portable unit, providing stable communication and low-latency performance. Equipped with a high-brightness display and intuitive control interface, it ensures clear real-time monitoring in outdoor environments. With efficient system integration and dependable performance, the G12 is ideal for inspection, mapping, and general industrial applications.

Inquiry

Write a Review

Qualcomm Android Platform

The G12 is powered by a Qualcomm 6225 processor and runs on Android 13. It effortlessly supports hardware decoding for H.264/H.265 and 4K video streams, enabling smooth operation of all types of ground station software.

2.4GHz/5.8GHz Dual-Band

Equipped with an all-new high-power, high-bandwidth 2.4/5.8GHz dual-band wireless module, it features automatic frequency hopping and autonomous dynamic MCS adjustment.

20KM Remote Control & Image Transmission

Leveraging Yunzhuo's proprietary data, video, and control link technology, the G12 delivers a 20KM range for image transmission and remote control.

Fast Charging & Long Battery Life

The new platform reduces power consumption and heat generation, effectively extending battery life to 4–8 hours, with support for PD 18W fast charging.

Abundant Interfaces

The G12 offers a full range of interfaces including SIM card slot, USB port, Type-C port, PPM port, and more. It is compatible with a wide variety of video devices such as cameras, gimbals, and optical pods.

Yunzhuo G12 Product Introduction

The G12 is powered by the Qualcomm 6225 processor and runs on an Android 13 (64-bit) embedded system, delivering smooth operation and an open ecosystem. It adopts a new high-power, high-bandwidth 2.4/5.8GHz dual-band wireless module, supporting automatic frequency hopping and adaptive MCS adjustment for stable transmission.

Equipped with a 5.5-inch high-brightness display, the G12 ensures clear visibility even under strong outdoor sunlight. It supports multiple interfaces including SIM card, USB, Type-C, and PPM, enabling flexible connectivity and video overlay functions.

With 18W PD fast charging, the device offers an endurance of up to 4–8 hours. Combined with advanced data link technology, it achieves image transmission distances of up to 20 km, making it a reliable solution for long-range operations.

Parameter	Value
Model	G12
Channels	12
Dimensions	194.3 × 282.2 × 94.9 mm
Weight	683 g
Display Size	5.5 inch
Screen Resolution	1920 × 1080
RAM + Storage	4 GB + 64 GB
Operating Frequency	2.4 GHz / 5.8 GHz
RF Power	23 dBm @ CE / FCC
Control Range	5-20 km
Battery	10000 mAh / 4.2 V
Endurance	4-8 hours
Charging Port	Type-C
