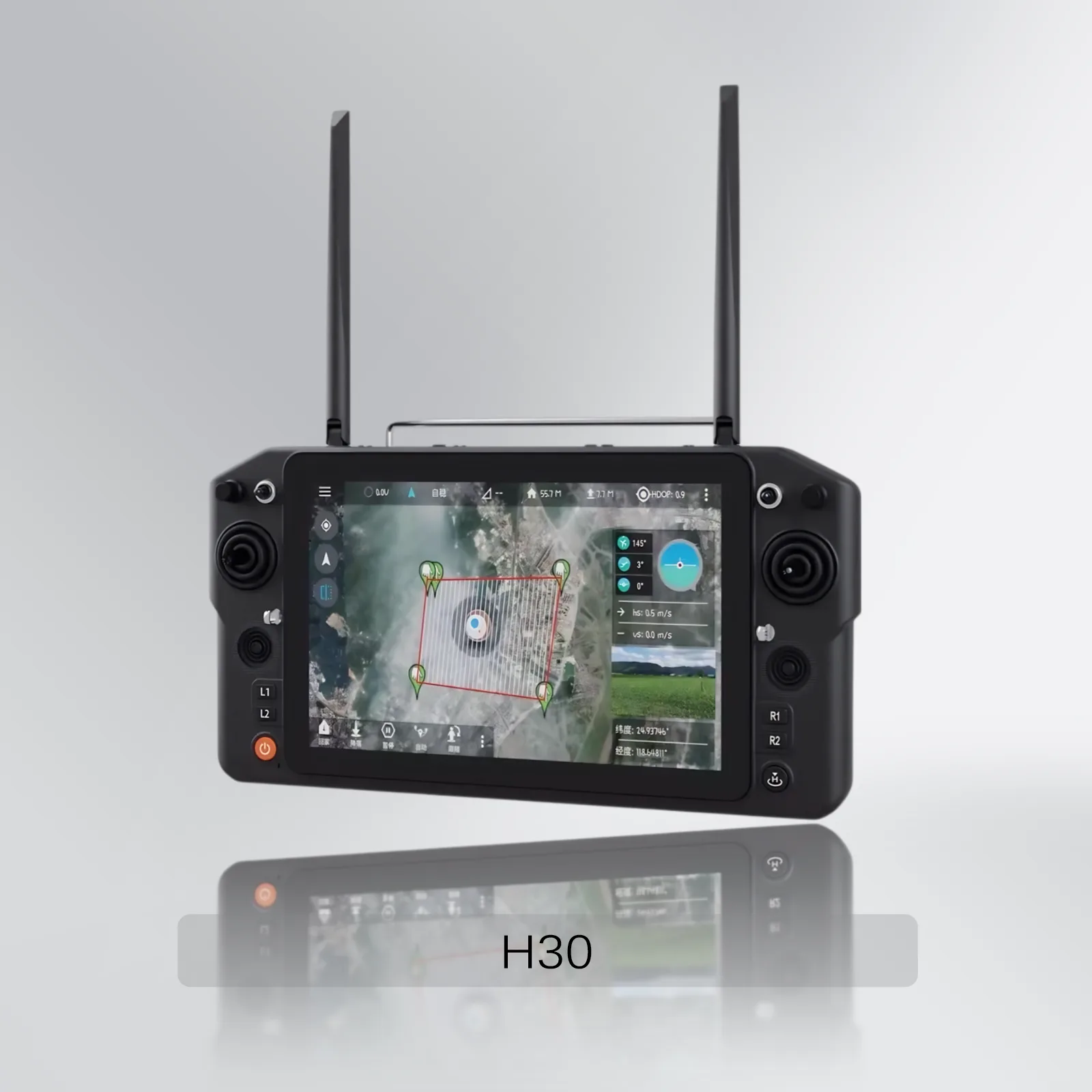

AEROFOX H30
Qualcomm Android Platform
Equipped with the Qualcomm 660 high-performance processor and Android 9.1 system, delivering powerful integration, smooth operation, and strong functionality. Supports real-time 3D mapping.
Stable Triple-Link Communication
The H30 supports dual operating frequencies of 1.4 GHz and 2.4 GHz, ensuring stable transmission, low latency, and extended control range with excellent anti-interference performance.
Advanced Image Transmission Technology
With cloud-based intelligent data link technology, the H30 achieves image transmission distances exceeding 10 km, with a maximum control range of up to 50 km.
10.1-inch High-Brightness Display
The H30 features a 10.1-inch large display with a resolution of 1920 × 1200. It supports touch operation and remains clearly visible even under strong outdoor sunlight.
Rich Connectivity Options
Supports USB, LAN port, audio, HDMI, TF card slot, and Type-C interface. Also includes a 4G SIM card slot, enabling various functions via 4G connectivity.
Yunzhuo H30 Product Introduction
| Parameter | Value |
| Model | H30 |
| Channels | 16 |
| Dimensions | 361 × 393.2 × 102.4 mm |
| Weight | 1.5 kg |
| Display Size | 10.1 inch |
| Screen Resolution | 1920 × 1200 |
| Operating Frequency | 1.4 GHz / 2.4 GHz |
| RF Power | 23 dBm @ CE / FCC |
| Control Range | 5-50 km |
| Battery | 20000 mAh / 4.2 V |
| Endurance | 5 hours |
| Charging Port | Type-C |
Extensive Experience in UAV & Robotics Technologies
Independent Flight Control System Development Advanced Powertrain Engineering Professional Intelligent Battery Development
