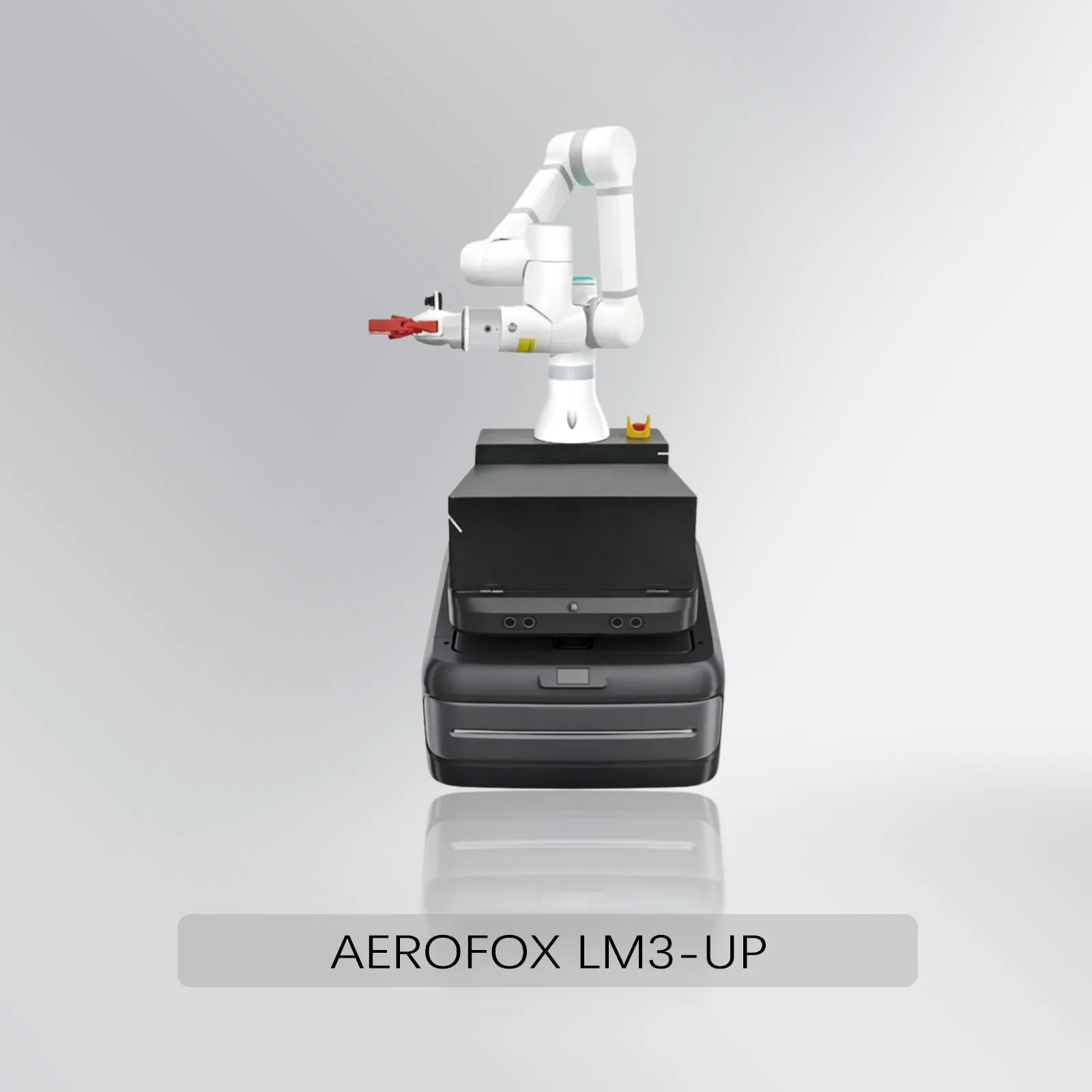

AEROFOX LM3-UP
The AEROFOX LM3-UP is an advanced composite robot that integrates a mobile robotic base with the LM3 collaborative arm, creating a highly flexible and intelligent automation solution. Designed for service robotics, AI applications, and smart logistics, LM3-UP combines mobility, perception, and manipulation into one unified system.
Powered by a high-performance computing platform and equipped with vision sensors, LiDAR, and intelligent navigation algorithms, LM3-UP enables autonomous movement, dynamic obstacle avoidance, and precise task execution. It supports SLAM-based mapping and multi-robot coordination for complex environments.
The system offers open APIs and SDKs, allowing seamless integration with various software ecosystems and custom applications. With features such as autonomous charging, cloud-based scheduling, and intelligent task management, LM3-UP can operate continuously in real-world scenarios.
It is an ideal solution for next-generation service robots in retail, healthcare, and commercial automation.
|
Power Supply |
220–240VAC, 7.5A, 50/60Hz (Three-phase five-wire) |
|
Weight |
79.5kg (Body) + 4kg (Charging Pile) |
|
Working Environment |
0°C ~ 40°C |
|
Humidity |
10–70% (25°C) |
|
External Interfaces |
Ethernet Port, HDMI, USB |
|
Built-in Battery |
Lithium Iron Phosphate Battery DC 24V 12Ah |
|
Safety Protection |
Laser Scanner, Vision Obstacle Avoidance, Force Sensors, Emergency Stop |
|
Ground Clearance |
3 cm |
|
Max Climbing Angle |
12° |
|
Max Obstacle Height |
20 mm (Load 50kg) |
|
Max Gap Crossing |
4 cm |
|
Min Passage Width |
60 cm |
|
Min Turning Clearance |
5 cm |
|
Max Speed |
1.5 m/s |
|
Normal Speed |
0.8–1.4 m/s |
|
Movement |
Forward / Lateral / Backward |
|
Charging Method |
Wireless Charging |
|
Charging Voltage |
28.4 V |
