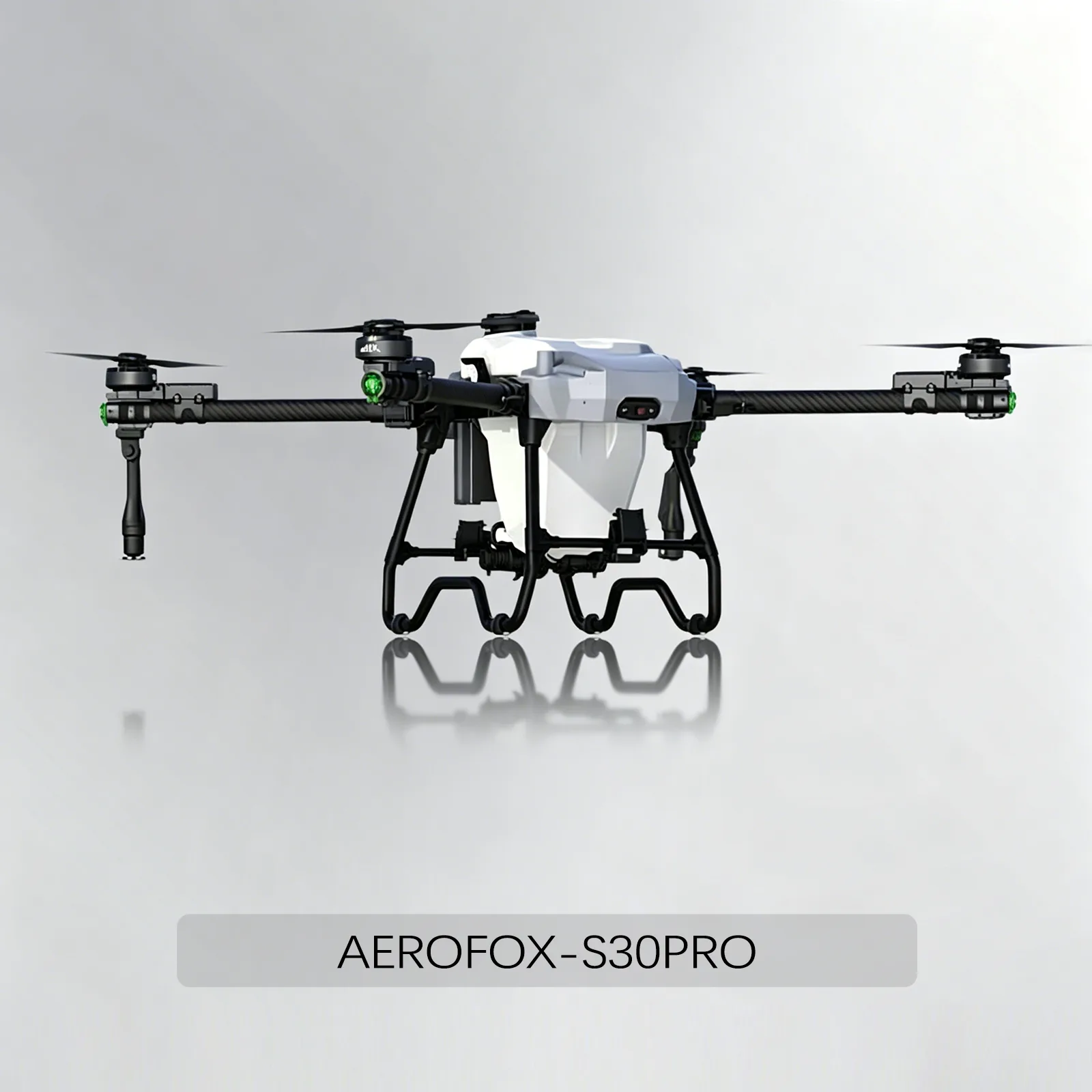

AEROFOX-S30PRO

The AEROFOX-S30PRO is a compact agricultural UAV optimized for precision spraying in medium-scale farming operations. With its efficient spraying system and intelligent flight control, it ensures uniform application and reduced waste. The drone features obstacle avoidance, automated route planning, and stable hovering capability, making it easy to operate even in complex terrains. Its lightweight yet durable design enhances portability and durability. The S30PRO is an ideal solution for farmers seeking efficient, accurate, and cost-effective crop management.

Inquiry

Write a Review

The Miki S3oPRO plant protection machine is replaced in turn with two batteries and one chargerto achieve long- lasting cycle operation

The aluminum alloy frame is lighter and stronger

30L large capacity water tank/50L spreading tank

I.supports Mt mode, transer point, auxiliary point mapping, intellignt breakpoint, and FP.configuration to expand the field of vision and real time monitoring

High-precision impeller pump, controllable flow and precise operation

Mechanical Parameters

Performance Parameters

Parameter	Value
Dimensions (Unfolded / Folded)	1375 × 1605 × 680 mm / 880 × 760 × 815 mm
Wheelbase	1495 mm
Operating Voltage	14S
Weight	23.7 kg (without battery)
Payload	30 kg / 50 L
Spray Amplitude	6-8 m
Empty Weight	23.6 kg
Power System	Hobbywing X11 Plus
Sprinkler System	8 L water pump + 2 centrifugal sprinklers
Spray Flow Rate	Max: 7 L/min
Spraying Time	4 min 7 s
Battery	14S 28000mAh × 1 pc
Charging Time	20 min
Charge Cycles	300-500 times
Full Load Current	140-170 A
No-load Current	50-60 A
No-load Flight Time	20 min (30% battery), 24 min (15% battery)
Full Load Flight Time	7 min 54 s (30% battery)
